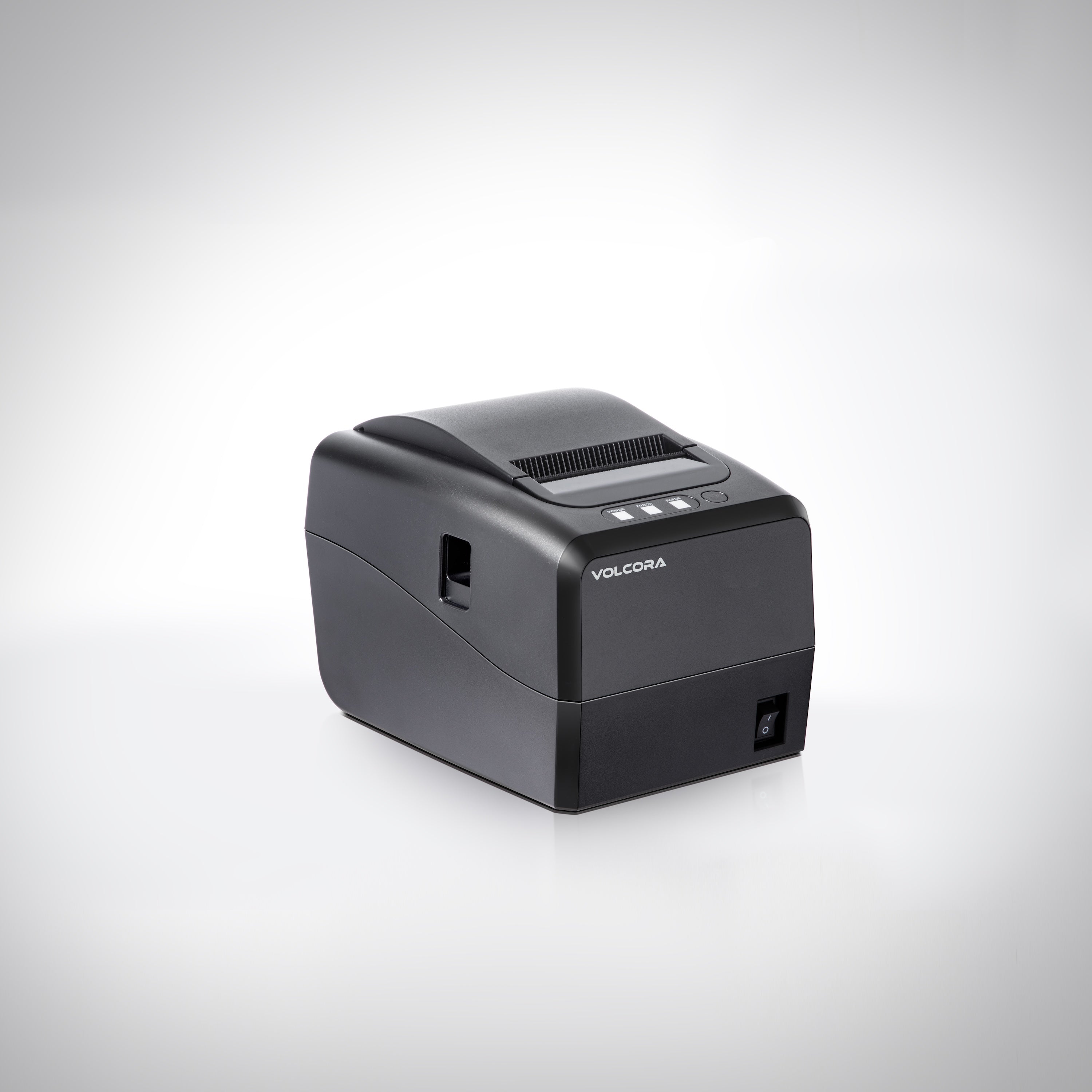

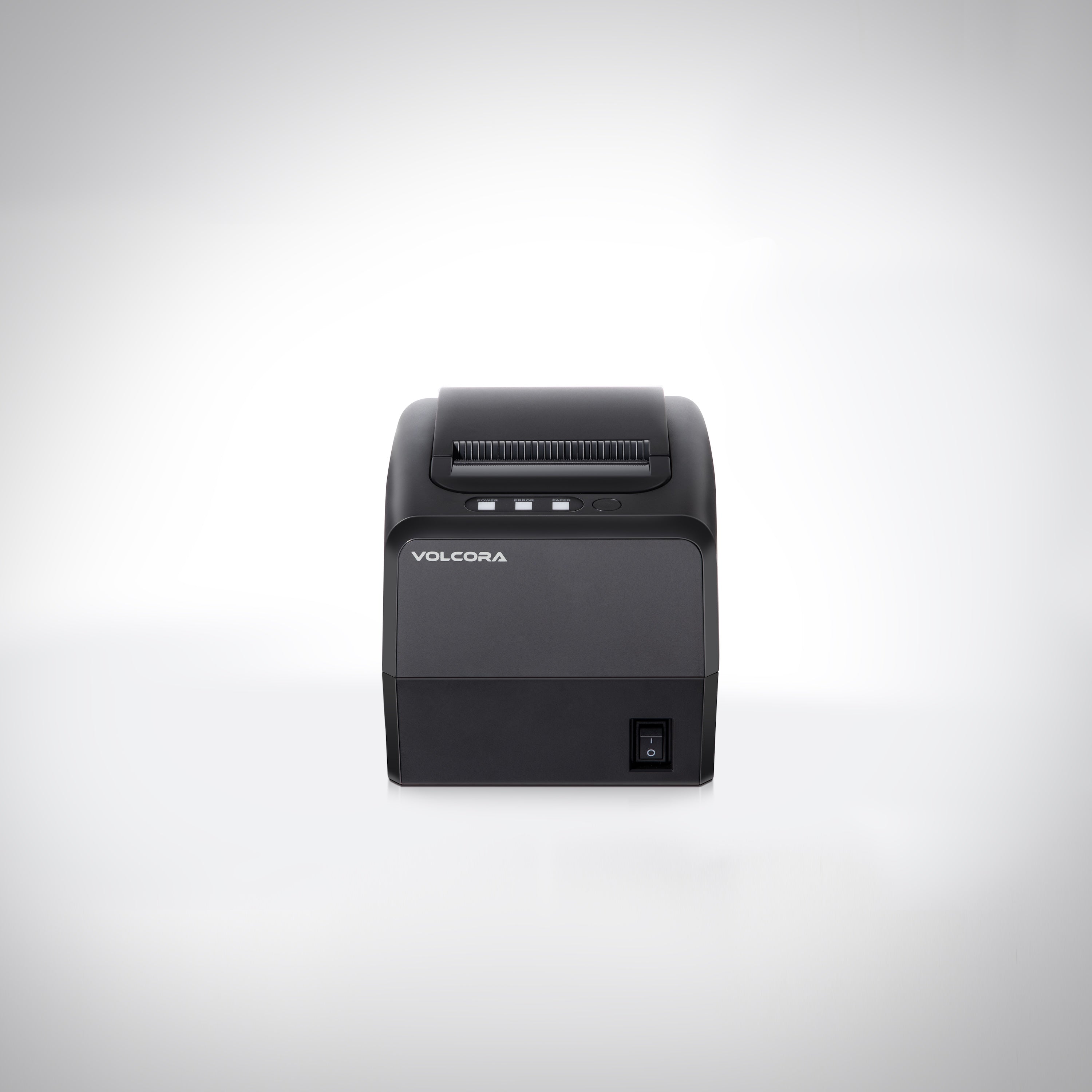

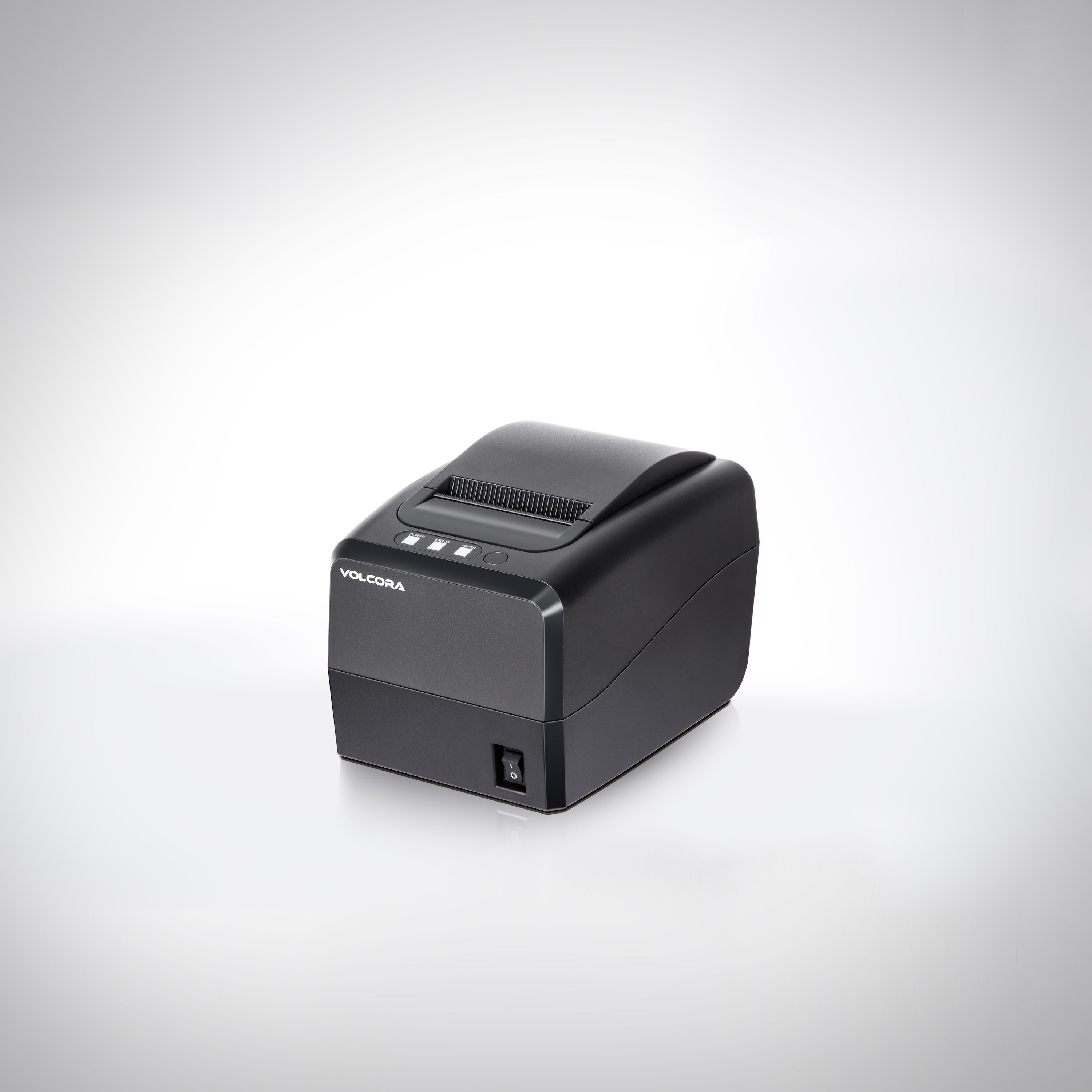

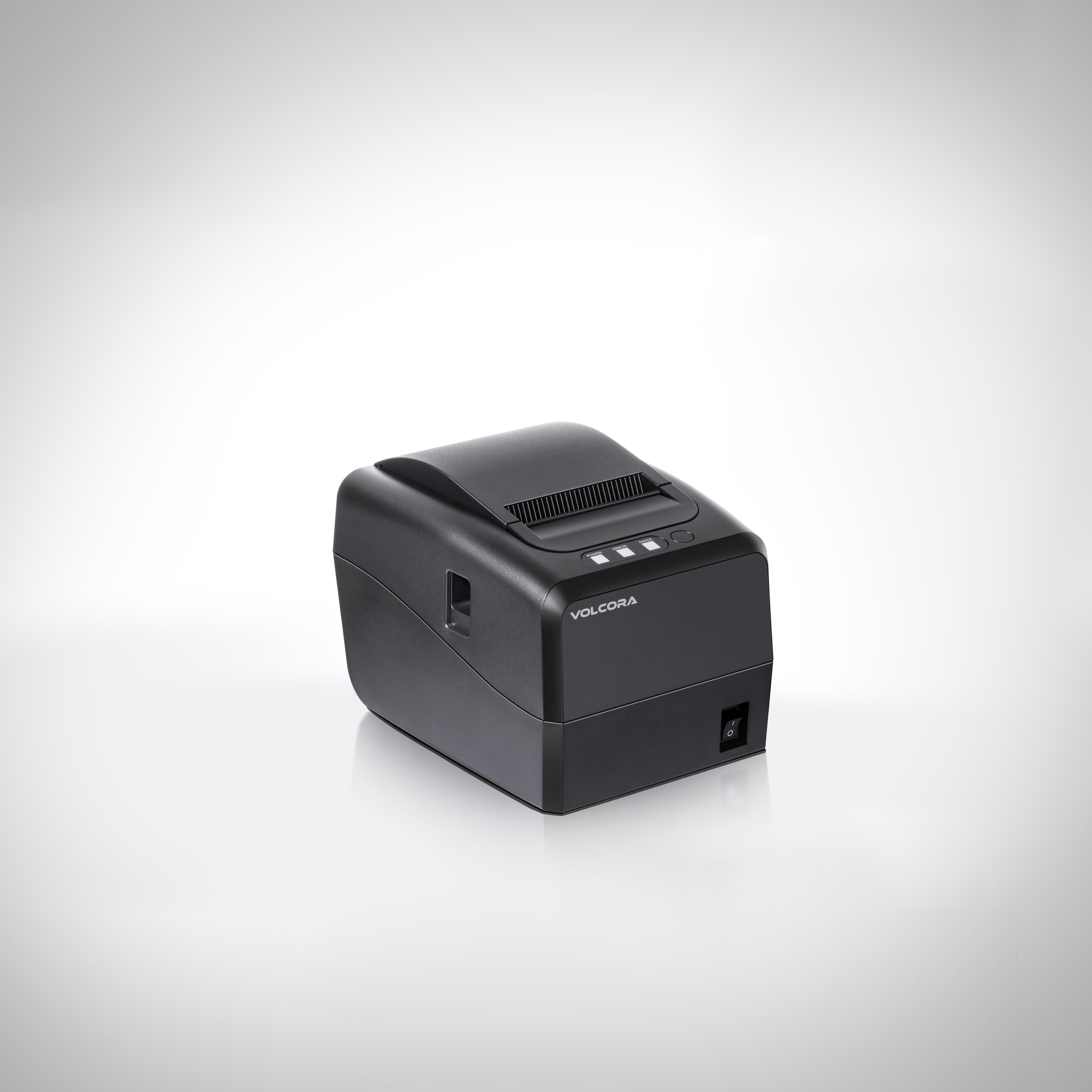

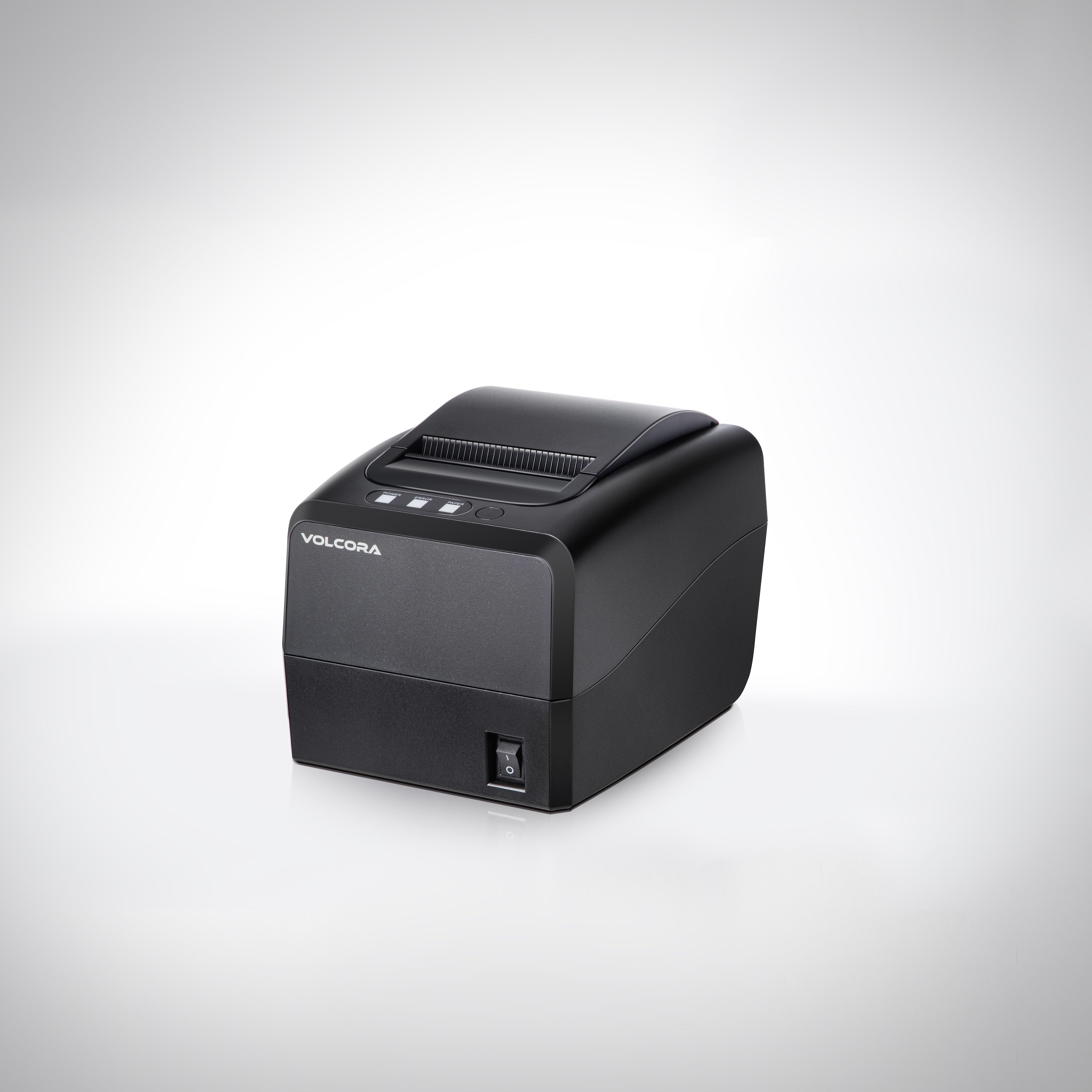

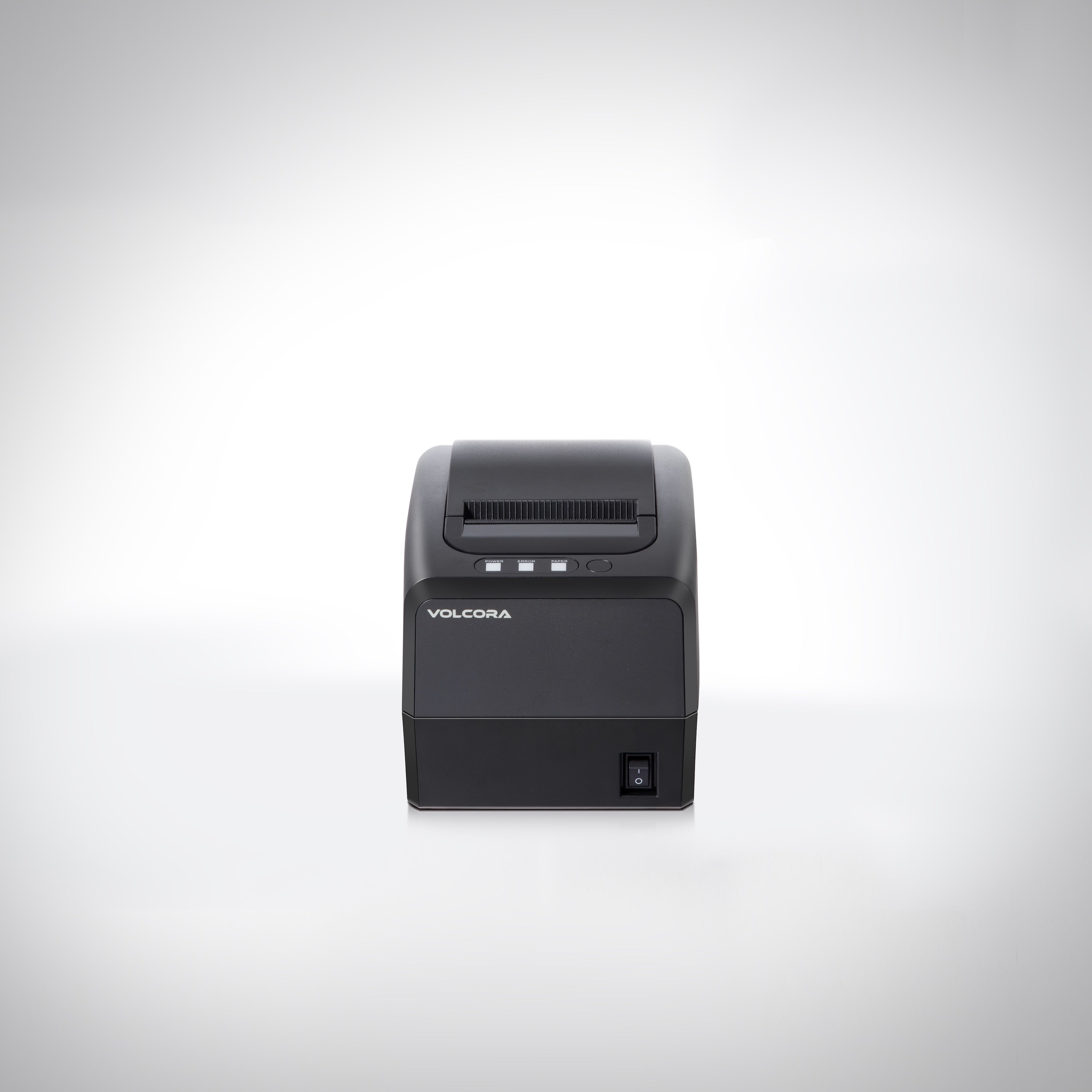

Linerless Receipt and Label Printer - USB+Ethernet+RS232+WIFI
A fast, reliable thermal printer designed for modern POS environments—supporting linerless media, flexible connectivity, and long-life components...
SKU:
500220-OC
- $105.95
- $105.95
- Unit price
- per
Free Shipping
Free shipping on all orders
Free Returns
Learn More.
International Shipping
We can now ship globally! Click to Learn More.
Buy More, Save More!
Buy 10+ and Save 10%! Limited Time Offer.
Discount applies at checkout. Terms and exceptions apply.
Not applicable on softwares and accessories.
Product Description
xA fast, reliable thermal printer designed for modern POS environments—supporting linerless media, flexible connectivity, and long-life components for busy front counters and kitchens.
- Fast & sharp printing: Direct thermal printing up to 160 mm/s (adjustable) with 203 dpi resolution.
- Flexible connectivity: Available in USB + LAN + Serial or USB + LAN + Serial + Wi-Fi/Bluetooth configurations.
- Linerless-ready design: Supports linerless labels & receipts with an anti-adhesive roller to reduce residue buildup. Easily switch between linerless label mode or receipt printing mode.
- Built for daily volume: Auto-cutter (1,000,000 cuts) and print head life up to 100 km, with paper/head sensors for stability.
- Wide compatibility: Supports common command modes ESC/POS, TSPL, and CPCL; works across major OS platforms.
Specification
xVolcora Thermal Receipt Printer — Model 500220-OC (Black)
| Overview | |
|---|---|
| Model | 500220-OC |
| Color | Black |
| Key Features | Supports linerless labels & receipts; anti-adhesive roller design; built-in paper detection sensor; Square-compatible, stable performance |
| Printing | |
| Print Method | Direct Thermal |
| Print Speed | 2–6 in/s (adjustable); ESC: 160 mm/s |
| Resolution | 203 dpi (8 dots/mm) |
| Printing Width | 72 ± 0.2 mm (Max) |
| Discharge Direction | Output paper on top |
| Paper Separator (Option) | 72 ± 0.2 mm (Max) |
| Interfaces | |

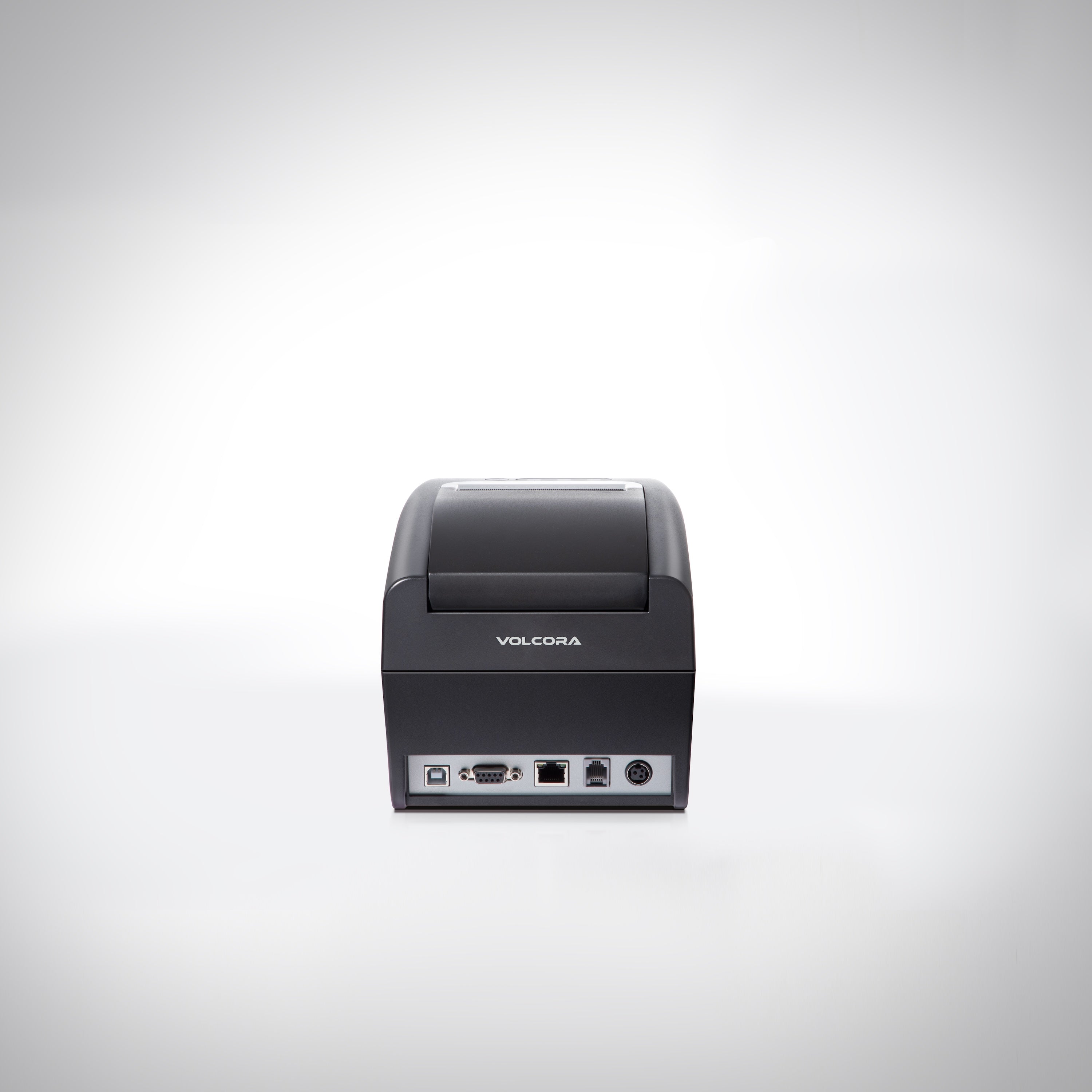

| Connectivity Options | USB + LAN + Serial or USB + LAN + Serial + Wi-Fi / Bluetooth |
| Paper Handling | |
| Paper Type |
Linerless thermal label roll; Continuous thermal label roll (with backing paper); Thermal receipt paper |
| Paper Width | 80 mm / 58 mm / 40 mm |
| Paper Thickness | 0.06–0.10 mm |
| Roll Diameter | OD: 80 mm |
| Paper Load | Easy paper loading |
| Paper Cut | Automatic paper cutting |
| Detection (Sensors) | |
| Sensors | Print head temperature sensor; print head position detection; paper exists detection |
| Power | |
| Input | AC 100V–240V, 50/60Hz |
| Output | DC 24V / 2.5A |
| Memory | |
| Input Buffer | 2M |
| NV Flash | 4M |
| Fonts | |
| Font A | 12×24 |
| Font B | 9×17 |
| Chinese | GB18030, BIG5 24×24 dots |
| Japanese/Korean | Support (Optional) |
| User-defined | Support |
| Barcodes | |
| 1D | UPC-A / UPC-E / JAN13(EAN13) / JAN8(EAN8) / CODE39 / ITF / CODABAR / CODE93 / CODE128 |
| 2D | QR Code |
| Reliability | |
| Printing Head Life | 100 km |
| Cutter Life | 1,000,000 cuts |
| Physical Characteristics | |
| Working Condition | 0°C–45°C, 10%–90% RH (non-condensing) |
| Storage Condition | -10°C–50°C, 10%–90% RH |
| Dimensions (D×W×H) | 195 × 151 × 145 mm |
| Net Weight | 1.34 kg |
| Gross Weight | 2 kg |
| Kitchen / Indicators | |
| Status Support | Power / Paper / Error |
| LED & Beeper | LED indicator light; beeper: without |
| Hanging Device | Equipped |
| Software | |
| Emulation | TSPL, CPCL, ESC/POS |
| Driver | Windows XP/7/8/10/11, macOS, Linux |
| SDK | Android, iOS, Windows |
| In the Box (Accessories) | |
| Included | USB data cable, power adapter, power cord, user manual, CD, paper baffle, paper roller, paper roll |
