Volcora 21.5" Android™ 14 Kitchen Display System (KDS Standard) for Restaurants & QSR – Full HD, IP54 Touchscreen, VESA Mount, Anti-Fingerprint Coating, Heavy-Duty
Keep your kitchen operations running smoothly with the Industrial Grade Heavy Duty Volcora KDS Standard, a commercial-grade Kitchen...
- $599.00
- $599.00
- Unit price
- per
Free Shipping
Free shipping on all orders
Free Returns
Learn More.
International Shipping
We can now ship globally! Click to Learn More.
Buy More, Save More!
Buy 10+ and Save 10%! Limited Time Offer.
Discount applies at checkout. Terms and exceptions apply.
Not applicable on softwares and accessories.
Product Description
xKeep your kitchen operations running smoothly with the Industrial Grade Heavy Duty Volcora KDS Standard, a commercial-grade Kitchen Display System designed for demanding restaurant environments. Powered by the efficient RK3576 chip, 8G RAM and 64GB Disk, this all-in-one kitchen display delivers reliable performance, responsive PCAP multi-touch control, and an IP54-rated sealed design built to withstand heat, moisture, and everyday kitchen conditions.
Featuring a 21.5-inch Full HD touchscreen, anti-fingerprint coating, Wi-Fi connectivity, multiple I/O options, and VESA mounting compatibility, the Volcora KDS is ideal for restaurants, cafes, quick-service chains, food trucks, ghost kitchens, and commercial kitchens seeking a dependable digital order management solution.
Key Features
- Android™ 14 OS
- RK3576 - 8G RAM + 64G Disk
- 21.5" Full HD (1920×1080) Industrial Display
- Projected Capacitive Multi-Touch Screen (PCAP)
- IP54-Rated Sealed Construction
- Anti-Fingerprint Coating
- VESA Mount Compatible (75×75 & 100×100)
- Dual-Band Wi-Fi (2.4GHz / 5GHz)
- 5 USB Ports
- Dual RS-232 Serial Ports
- Built-In Speaker
- Commercial-Grade Reliability
Built for Restaurant Kitchens
Designed specifically for food service environments, the Volcora Kitchen Display System replaces paper tickets with a streamlined digital workflow, helping improve communication between front-of-house and kitchen staff while increasing order accuracy and speed.
Commercial-Grade Touchscreen
The 21.5-inch industrial display features:
- Full HD 1920 × 1080 resolution
- Projected capacitive multi-touch technology
- Responsive operation with gloves
- Anti-fingerprint coating for easy cleaning
- Wide 16:9 viewing area
Perfect for busy kitchens, prep stations, and order management applications.
Reliable Android Performance
Powered by Rockchip processors and Android™ 14, the Volcora KDS provides stable, efficient operation for Android-based restaurant software and kitchen management applications.
Processor Options: Rockchip RK3568, RK3576, RK3588
Memory: 8GB LPDDR5 (Expandable to 16GB)
Storage: 64GB eMMC (Optional 128GB or 256GB)
Operating System: Android™ 14
IP54-Rated for Demanding Environments
The sealed enclosure protects against dust, splashes, grease, and moisture commonly found in commercial kitchens, helping ensure dependable performance throughout long operating hours.
Flexible Connectivity
The Volcora KDS supports a wide range of restaurant peripherals and integrations:

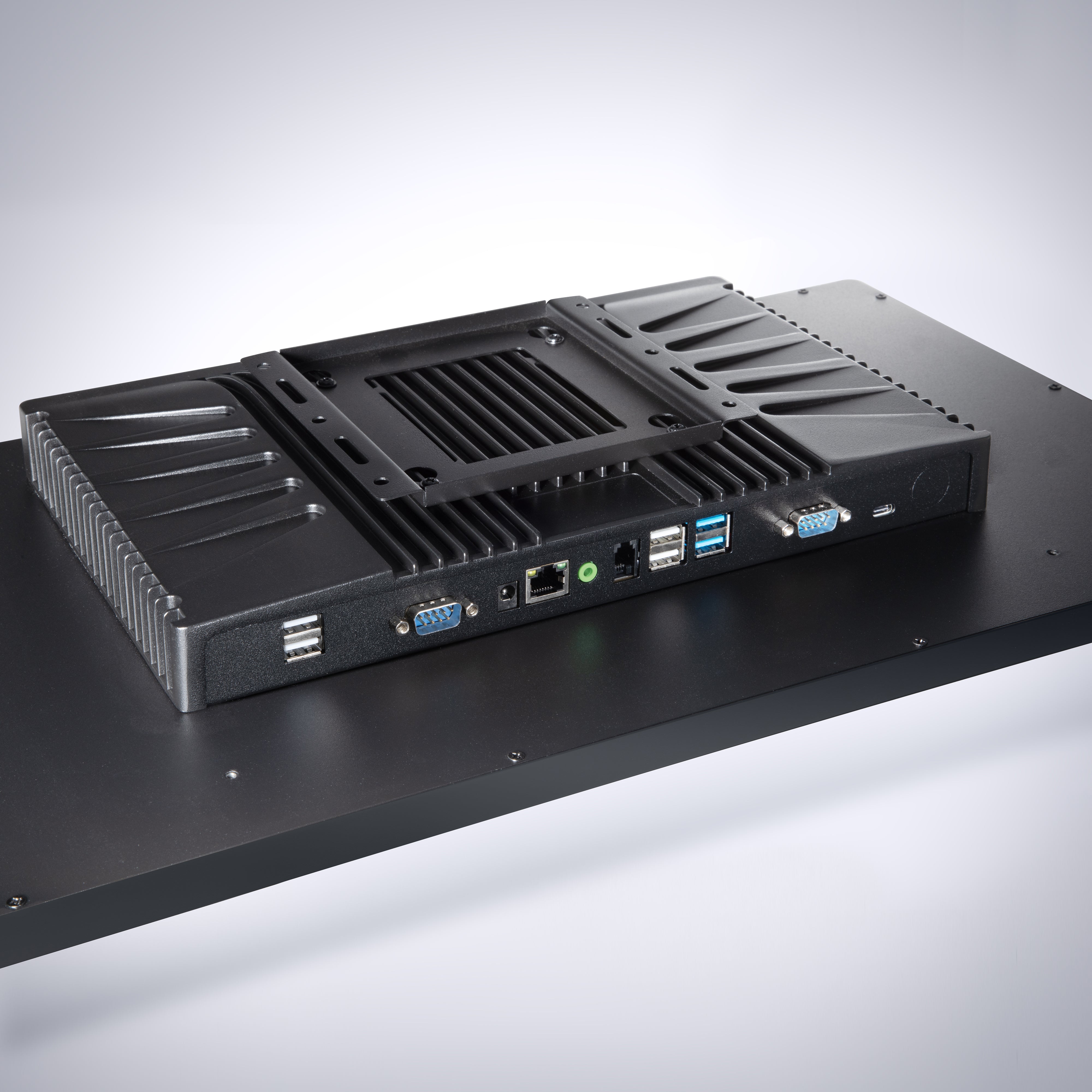

Ports & Interfaces
- 5 × USB Type-A
- 1 × USB Type-C
- 1 × RJ45 Ethernet Port
- 2 × RS-232 Serial Ports
- 1 × HDMI Output
- Audio Input (MIC)
- Audio Output
- Combo Audio Jack
- Built-in 3W Speaker
- Bluetooth 4.2
- Dual-Band Wi-Fi (2.4GHz / 5GHz)

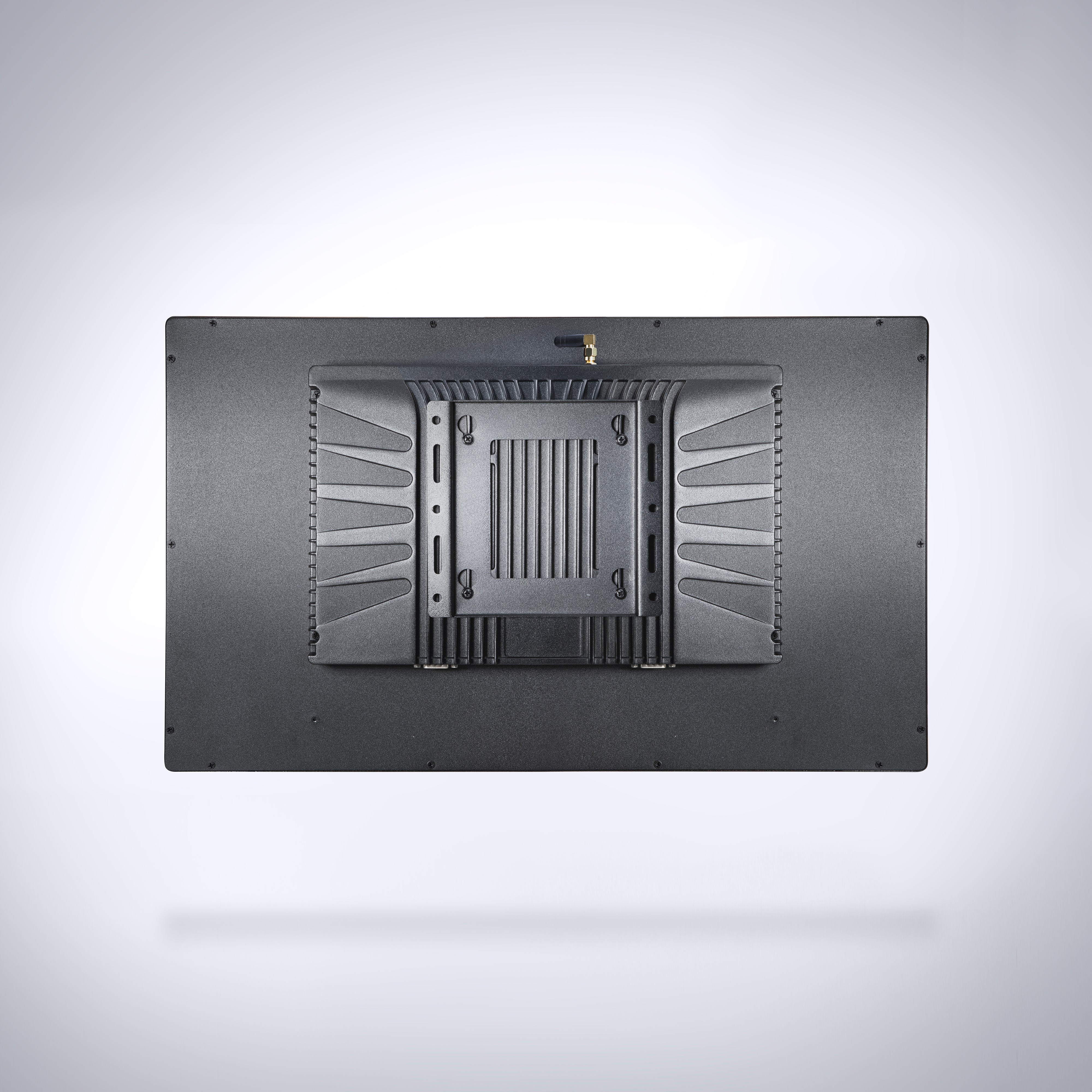

VESA Mount Compatible
Compatible with both:
- 75 × 75 mm VESA
- 100 × 100 mm VESA
Allowing easy installation on walls, arms, shelves, or kitchen stations.
LIFETIME WARRANTY & SUPPORT
Simply unbox, and set up your KDS like a PC with ease. We do understand that additional support might be needed for non-tech-savvy users and our US Based Customer Service team is committed to help. Plus, all Volcora products come with a limited lifetime warranty so you can purchase with peace of mind.
Lifetime Warranty
xLIFETIME WARRANTY POLICY & GUIDELINES
Our warranty is a way of pledging excellence in the quality of our products. It is a way of protecting our customer’s investments and continuing product improvement. Mostly, our warranty is a way of extending our dedication to our customers.
LIFETIME WARRANTY
Volcora warranty obligation: We pledge to repair or replace, at Volcora’ option, any Volcora product or component that is defective in material or workmanship for as long as you, the original purchaser, own it. This warranty is subject to the provisions below.
WARRANTY SUBJECT TO EXCLUSIONS
Exclusions pertaining to this warranty are as follows but are not limited to:
- Product or product components utilized with the intent to rent or lease.
- Freight damages: Volcora is not liable for any product damages sustained during shipping or handling operations not initiated by Volcora. Volcora reserves the right to review and address product distribution matters separately.
- Normal wear and tear.
- Product negligence: A product is not considered defective upon improper installation, or misuse of the product or its components.
- Alterations or attachments to the product that were not approved by Volcora.
- Use of non-multiple shift products for multiple shifts.
- Products used for rental purposes.
- Lost or stolen key and related damage (ie. force open, damage of lock inserts, etc)
Volcora's warranty obligation is limited to normal use upon receipt of our products.
Normal commercial usage for Volcora products is defined as the equivalent of a single shift, forty (40) hour work week.
WARRANTY PROCEDURES
Please follow the warranty procedures described below to ensure apt and responsive service.
- Once a defect has been discovered, the original purchaser must contact Volcora Support at support@volcora.com or authorized reseller immediately (within 30 days of defect detection), in writing with images or videos, date, model number and original receipt (if applicable) from the product(s) in question.
- Upon inspection of the product(s), Volcora will collect all relevant information necessary for review of the request.
- Product replacement, replacement parts and repairs will be authorized by a Customer Care representative if acknowledged to be necessary under product warranty eligibility conditions.
*Warranty Terms and Policies are subject to change by Volcora at any time without prior notice. For more information, please contact support@volcora.com.
Specification
xSpecifications
| System | |
|---|---|
| Model | VOC-V-KDS-A1B |
| Operating System | Android™ 14 |
| Processor Options |
Rockchip RK3568 Rockchip RK3576 Rockchip RK3588 |
| Memory | 4GB / 8GB / 16GB LPDDR5 |
| Storage | 64GB / 128GB / 256GB eMMC |
| Display | |
|---|---|
| Screen Size | 21.5" / 27" Industrial-Grade LCD |
| Aspect Ratio | 16:9 |
| Resolution | 1920 × 1080 Full HD |
| Touch Technology | Projected Capacitive Multi-Touch (PCAP) |
| Touch Type | Multi-Point Touch |
| Surface Finish | Anti-Fingerprint Coating |
| Connectivity | |
|---|---|
| Wi-Fi | Wi-Fi 6, 2.4GHz / 5GHz |
| Bluetooth | Bluetooth 5 |
| LAN | 1 × RJ45 Ethernet Port |
| External I/O | |
|---|---|
| USB Ports | 5 × USB Type-A, 1 × USB Type-C |
| Serial Ports | 2 × RS-232 (DB9), 1 × RS-232 (RJ11) |
| Audio | 1 × Audio Combo Jack |
| Audio | |
|---|---|
| Speaker | 1 × 3W Speaker (4Ω) |
| Power | |
|---|---|
| Power Adapter Input | 100–240V AC, 50/60Hz |
| Power Adapter Output | 12V DC, 5A or 8A |
| Mechanical | |
|---|---|
| Dimensions | 20.28" × 12.20" × 1.97" |
| Weight | 10.36 lb |
| Environmental | |
|---|---|
| IP Rating | IP54 Rated |
| Construction | Reliable Performance, Sealed Construction |
| Highlights | |
|---|---|
| Operating System | Android™ 14 |
| Touchscreen | Projected Capacitive Multi-Touch Technology |
| Protection | IP54 Rated |
| Finish | Anti-Fingerprint Coating |
| Wireless | Wi-Fi 6 2.4GHz / 5GHz + Bluetooth 5 |
| I/O Integration | Flexible I/O Integration for Restaurant and POS Environments |
